DB Testare Noyes/AFL SMLP 5-5

Mäter dämpning i fiberkabla. -Multimode: 850/1300 nm -Single-mode: 1310/1550 nm
2st SC-SC patch, 1st skarvstycke SC simplex SM
2st SC/APC-SC patch, 1st skarvstycke SC simplex SM APC
Produktbeskrivning
Features:
Encircled Flux Compliant – with optional mode conditioner
USB port for transfer of stored results
TRM® 2.0 Reporting Software (Windows® compatible)
Certification Testing and Report Generation
Applications:
Certify multimode and single-mode links per TIA/EIA standards
Fiber identification prior to splicing
Passive Optical Networks (PON) testing
Save test data for Report Generation with NOYES TRM® 2.0 Software
Mer information

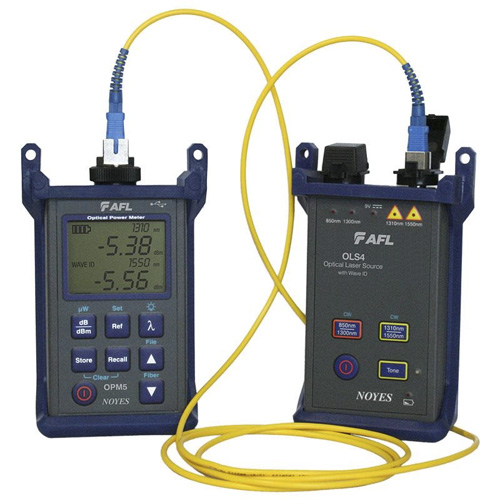

SMLP5-5 is a rugged loss test kit for testing and certifying fiber networks to
industry standards. Each SMLP5-5 Kit includes a handheld quad optical light
source plus OPM5 optical power meter. The OPM5’s backlit display is easily
viewed in both direct sunlight and dimly lit environments. Interchangeable
adapters connect to common optical network interfaces and provide easy access
for cleaning launch and receive ports.
OLS4 Quad Source is an integrated two-port LED (850 and 1300 nm) and laser
(1310 and 1550 nm) light source designed for performing insertion loss
measurements on multimode or single-mode fiber optic links. Each port can
transmit highly stabilized output (single or dual wavelength) to ensure accurate
loss test results per current TIA/EIA requirements. Equipped with industry
standard 2 kHz test tone, the OLS4 from AFL is an ideal tool to pair with an
optical fiber identifier (OFI-200D OFI-400) for use in fiber identification.
OPM5 Optical Power Meter provides accurate measurements, reference storage for
each calibrated wavelength, detects multiple test tones for fiber
identification, and provides in-unit data storage. The simple to use interface
allows for easy separation of test results into files. Integrated file
management provides access to results and keeps cable/job results separated for
fast customer report generation. Quickly transfer test results to PC via USB
interface.
Automatic Wavelength Identification significantly increases efficiency
Standard Wave ID feature automatically detects and sets the receive
wavelength(s), preventing setup and measurement errors. It significantly
increases efficiency and reduces technician errors, saving test time by
eliminating the need to test each wavelength individually.
Test Results Storage, Transfer, and Post Processing with TRM® 2.0
OPM5 File Management system allows technicians to organize test results into
multiple files. Stored OPM results may be transferred to PC via USB port for
viewing, analysis, and professional report generation using the included
Windows® compatible TRM® 2.0 Basic Test Results Manager software. TRM® 2.0
allows users to apply standards-based rules to test results and create
comprehensive certification reports complete with Pass/Fail results and
calculated headroom.
50 and 62.5 µm Fiber Mandrels Included
Mandrels condition test cable for use in certifying both 50 and 62.5 µm fiber
links for current and planned high bit rate applications, such as Gigabit
Ethernet and 10 Gigabit Ethernet. Mandrels are installed on launch jumpers in
seconds without tools and ensure loss measurements are tested per the
TIA/EIA-568-B standard.
Encircled Flux Compliance
International standards bodies established Encircled Flux (EF) guidelines
(TIA-568-14-B and IEC 61280-1-4) to improve measurement repeatability by
reducing loss measurement variation to within a target range of ± 10%.
EF Mode Conditioners attach to the output of your multimode source ensuring the
”conditioned output” meets Encircled Flux specifications. Compliance requires
matching the output fiber size to the network fiber under test. AFL offers both
50 µm and 62.5 µm EF Mode Conditioners. See below for list of available fiber
and connector combinations.
Key Specifications
OLS4 Quad MM/SM Source
SM Wavelengths: 1310 and 1550 nm
SM Output Power 0 dBm
MM Wavelengths: 850 and 1300 nm
MM Output Power -20 dBm
Test Tones: 2 kHz
OPM5 Optical Power Meter
Detector: Germanium
Calibrated Wavelengths: 850, 1300, 1310, 1550 nm
Measurement units: db, dBm, µW
